Bóng chứa khí CO2 Việt Nam

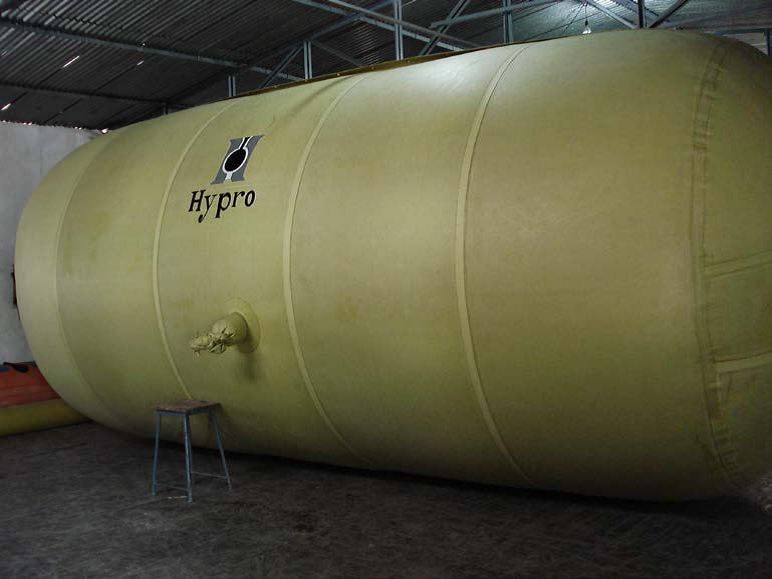

Data Sheet for CO2 Gas Balloon
1. Features
This Gas Holder Balloon is fabricated out of high tenacity polyamide fabric matrix, impregnated with compatible polymer on the inside for the gas stored and on the outside with hypalon for weather abrasion and UV resistance.
This Gas Holder Balloon is a collapsible, intermediated storage tank for any Industrial Gas, prior to bottling under pressure.
2. Advantages
The Distinct advantages of these types of Gas Holders are:
- Being manufacturing out of very tough rubberized fabric it is collapsible and very light weight and is installed hanging just below the ceiling, saving valuable floor space and is tailor made to suit the available space and capacity.
- Being fabric, it does not corrode (like the metal tank) and as such it is maintenance free, giving it a long, trouble free life.
Ganesh Gas holder balloon eliminates the use of conventional metal tank, currently used as intermediate storage.
Capacity |
A |
B |
C |
D |
10 m3 |
2100 |
3160 |
750 |
Depend on customers |
20 m3 |
2550 |
4000 |
750 |
|
25 m3 |
2750 |
4200 |
750 |
|
30 m3 |
2950 |
4400 |
750 |
|
40 m3 |
3350 |
4500 |
750 |
|
50 m3 |
3750 |
4500 |
750 |
3. Specifications for Balloon
- Capacity : 10-50 M3
- MOC (Material of Construction) :Polyamide and Outer Coating- Hypalon/Neoprene, UV Resistant. Inside Coating- Neoprene
- Hypalon Fabric in 1670dtx
- Weight in 1500 GSM/m2
- Operating Temperature : 40 (°C)
- Operating Pressure (mm WC): 150 – 300 mm water column
- Design Pressure (mm WC) : 400 mm water column
- Colour : Grey/Black
- Inlet and outlet connection (mm) : Depend on customers
